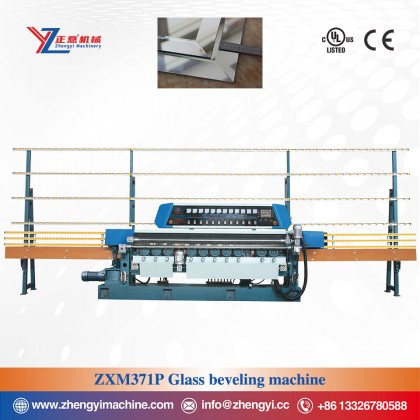

ZXM371P Glass Beveling Machine

View : 6078 | By Zhengyi

Product Details

Mechanical introduction：

Glass Beveling Machine ZXM371 series is an eleven grinding head bevel machine, conventional models according to different configurations have three models: ZXM371 ordinary type / ZXM371E electric digital display type / ZXM371P computer type.This glass bevel polishing machine is specially designed and manufactured for customer needs of glass large beveled, suitable for mass grinding and polishing of flat glass beveled edge and bottom edge; the front and back chain plates are made of thickened steel plates, which have strong rigidity, are not easy to deform, have good wear resistance, smooth transmission, direct grinding head motor, low voice, and few failures; The motor controls the overall swing angle of the twin screw, and has the function of integral advance and retreat of the grinding head swing frame; It has the advantages of advanced structure, high precision, convenient operation and strong stability.

Main Features：

◆ZXM371P is equipped with INOVANCE PLC, INOVANCE inverter, MCGS touch screen operation, with independent intellectual property rights operation interface;

◆ZXM371P type, operating system with trinity function, touch screen input bevel width, mechanical automatic adjustment;

◆ZXM371E type is based on the 371 ordinary type to add electric and digital display functions, and with swing frame integral advance and retreat function;

◆Base, girder, swing frame, column, grinding head are high density casting parts, strong and stable fuselage;

◆ABBinternational brand grinding head motor; 2.2KWvariable frequency motorwide range governor,ZHUJIANGworm gear box;

◆High quality alloy steel inserts of40cr steel, the front and back pads are hardened and wear-resistant by55 degrees high frequency quenching;

◆Front pads is combined with small pads construction structure,batch processing Mosaic glass loss splint without replacing the whole plate, reduce the cost of use;

◆Stainless steel water tank, two oil pumps on both sides respectively supply pressure plate, drag plate, lifting structure and other moving parts of lubrication;

◆Aluminum alloy scaffolding row;Italian BARBIERIsynchronous belt transmission;Delxibrand electric;

◆High quality paint shield; unique waterproof technology, girder bottom with water brush;

◆Coarse grinding wheel, fine grinding wheel, polishing wheel all use“XINGLI”brand, fine polishing wheel and felt wheel we use Italian wheels.
