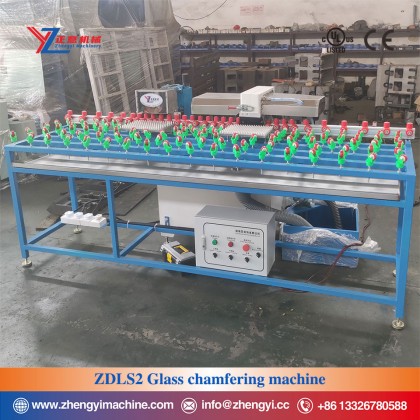

Glass Chamfering Machine ZDLS2

Mechanical introduction：
Glass Chamfering Machine ZDLS2 developed by the company, the main machine and the workbench are composed of split structure, which can be used in tempered glass, insulating glass, door and window glass and other rapid chamfering.
1、The workbench is mainly equipped with a water receiving tank and an electric control box.
2、The independent main enclosure has unique advantages in structure, which is different from many disadvantages of traditional products.
A. The precision sealing structure of the grinding head protects the bearing from water damage.
B. The waterproof performance is superior, and the water circulation system does not affect the opening and closing of the box, which is convenient for replacing the grinding wheel and the machine for future maintenance.
C Rationality of drive system, prolong machine life. The exposed drive system protects the power heart (motor) and various components Features: easy maintenance, ventilation and heat dissipation, moisture-proof and leak-proof, anti-glass powder corrosion and so on.

Mechanical parameters：
Quantity of grinding head：2
Processing speed：2~15m/min
Min glass size：150mm
Glass thickness：3~12mm
Working table height：750mm
Weight：300kg
Power：1.6kw
Machine overall size：2400*1500*1200mm
