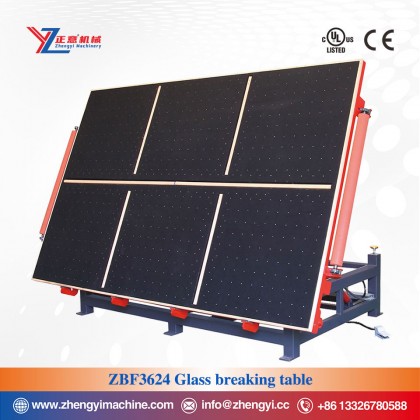

ZBF3624 Glass Breaking Table

ZBF3624 Glass flip breaking table, this machine adopts high-pressure fan to supply air, form an air cushion on the table, make the glass float on the table, reduce the resistance of glass transportation, and make the glass convey on the table surface lightly. The machine is a longitudinal desktop structure. It is composed of rack, air flotation table, air supply system, flipping system, and breaking system. Advanced design, reasonable structure, neat appearance, easy to use, safe and reliable, excellent performance. The device can be turned 0-90 degrees, which is convenient for upper and lower glass. The X-axis has two robust breaking rods and the Y-axis has one breaking rod, which can adapt to the breaking needs of different sizes of glass. The equipment can be used with a T-type push knife for cutting and dicing. In addition, it is also possible to add a cutting horizontal axis, so that it integrates the topping, cutting, breaking and flipping of the multi-functional cutting machine. The device comes with a remote control, away from the glass, for installation operation.

Main Features：

◆Simple structure and simple maintenance, no need for professional and technical personnel to operate and maintain;

◆The flip drive adopts hydraulic structure, and the whole machine has strong rigidity and large bearing capacity;

◆Stable performance, easy operation, manual and automatic integrated two modes;

◆Special fan for air floating table, high-power adjustable air volume;

◆The air flotation system air path is simple and maintenance-free, and there is no need for external plastic air ducts;

◆One horizontal and two vertical pneumatic breaking system, three independent controls;

◆Equipped with casters and ground brakes for easy movement and fast positioning.

Main parameters：

1、Max glass size：3600mm*2400mm

2、Max glass weight can process：350Kg

3、Working table height：900±30mm

4、Weight of the machine：900Kg

5、Total power：5Kw

6、Table size（L*W）：3400mm*2200mm

7、Overall size(L*W*H）：3630mm*2200mm*900mm
