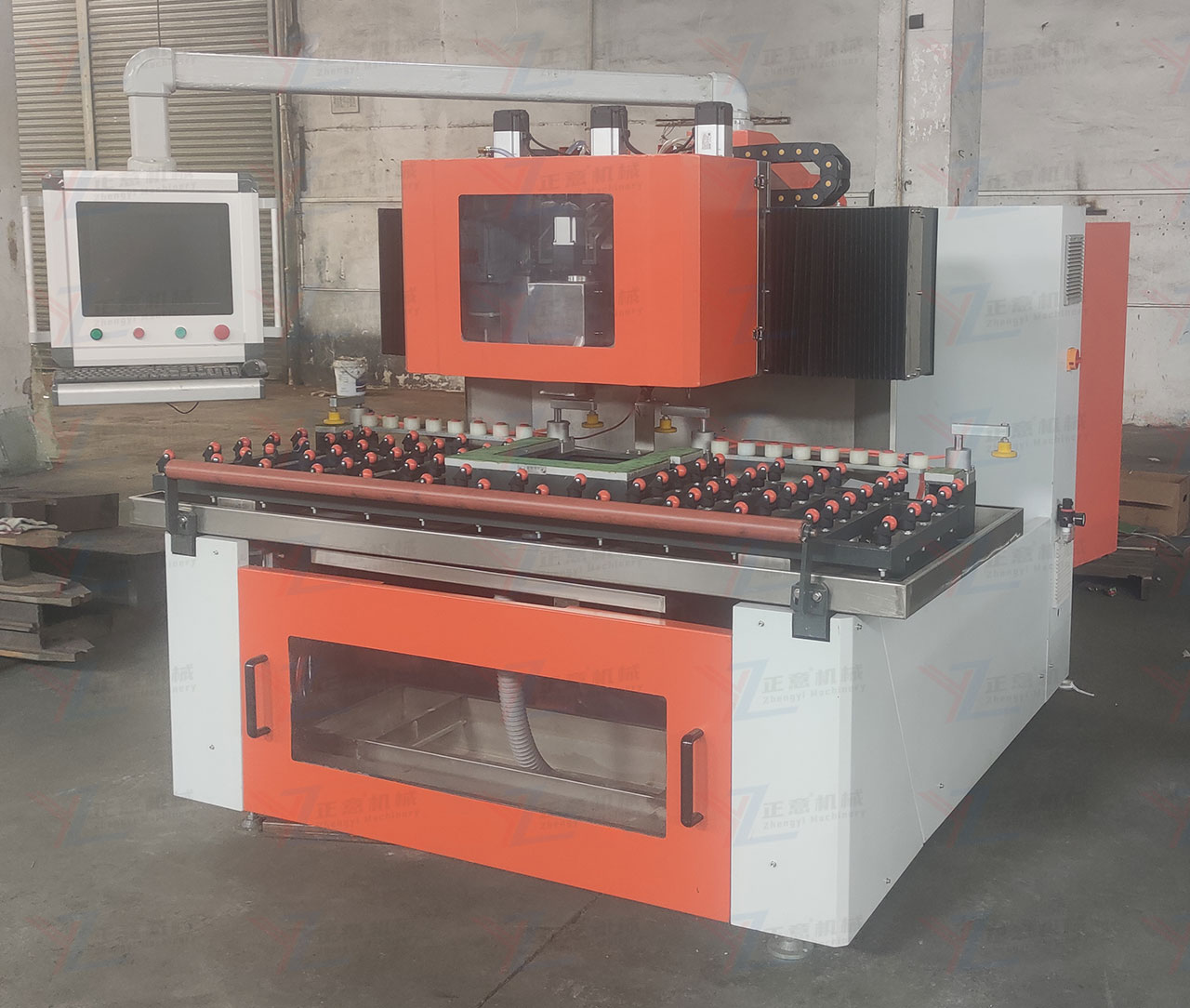

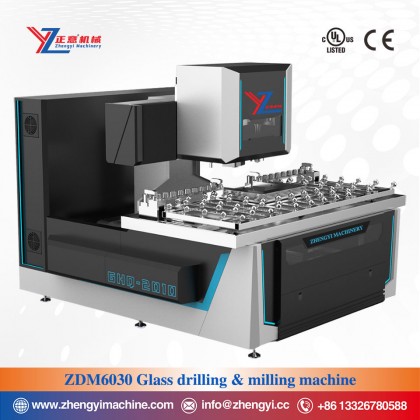

ZDM6030 CNC Glass Drilling & Milling Machine
ZDM6030 glass drilling and milling machine is suitable for drilling, grooving, cutting and edging on glass plates with a thickness of 3-19mm.The machinery has a small footprint and can do the job automatically and easily.
- Product Details
Mechanical introduction:

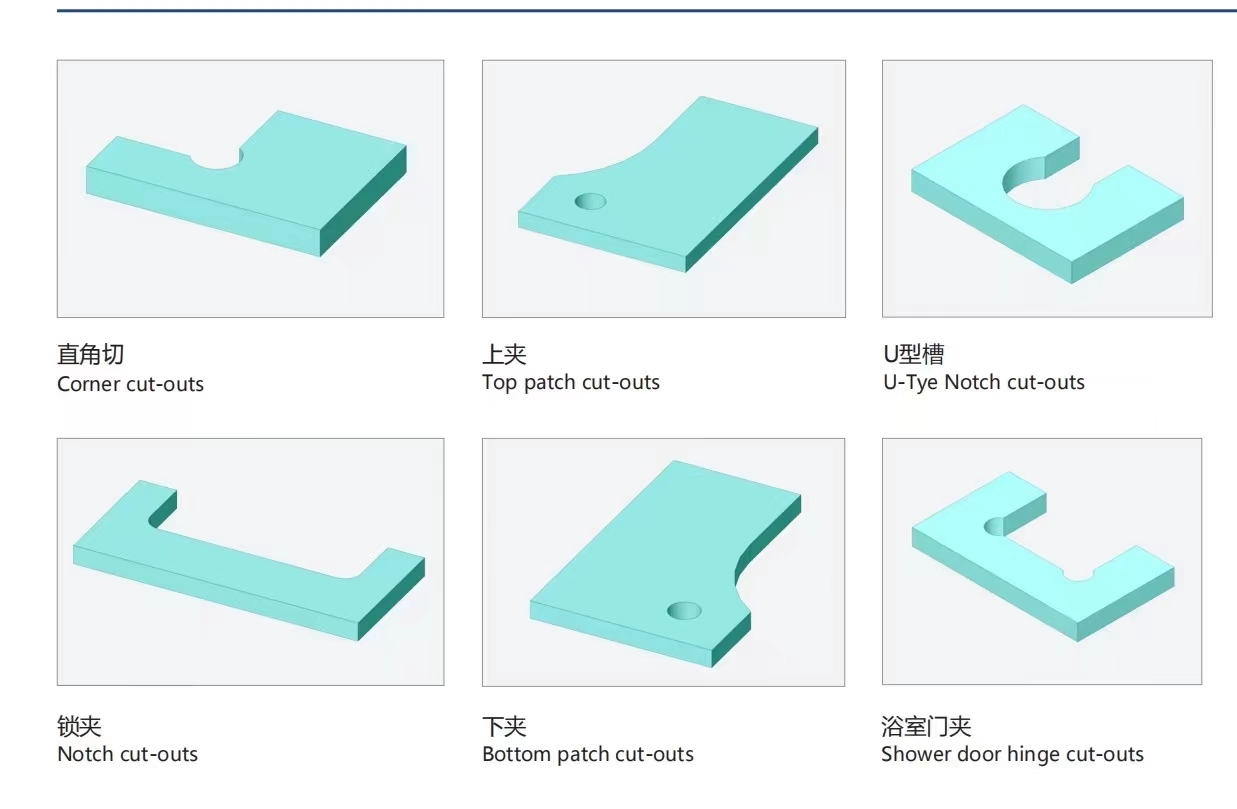

ZDM6030 glass drilling and milling machine is suitable for drilling, grooving, cutting and edging on glass plates with a thickness of 3-19mm.The machinery has a small footprint and can do the job automatically and easily. No need experience operator to control the machine, according to the graphic simple input size mechanical automatic execution of all operations, is a glass door clamp, glass butterfly mouth, glass grooving and other processes of professional equipment.
Main Features:
◆High productivity, full servo control, graphical user interface (GUI),
◆The mode is set inside the machine, just select the correct mode and enter the required parameter data, then press a button and the machine will do the job.

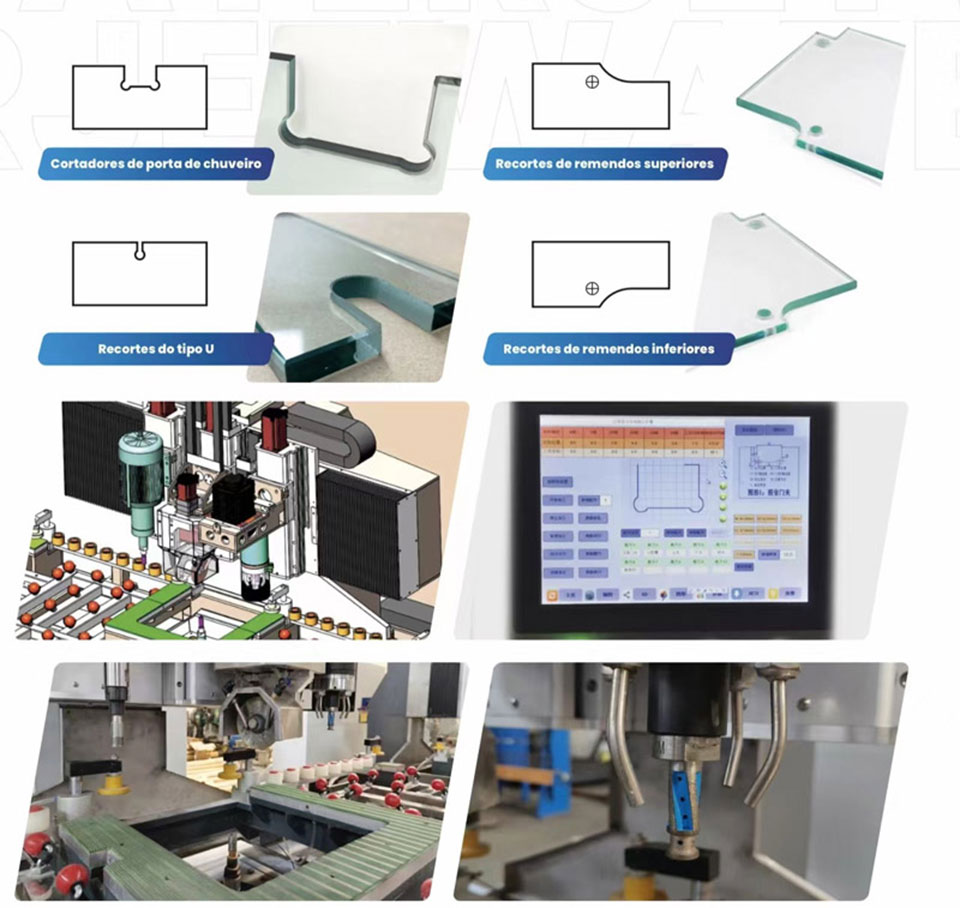

◆This machine adopts bottom drill, top drill, diamond blade and milling cutter.
◆This machine has better finishing cuts than water jet and gets the job done faster than traditional CNC machining centers.
◆This machine occupies less space than water jet machinery and CNC machining centers.
◆Stable performance, simple operation, no vibration, low noise, low tooling cost, less maintenance, simple adjustment.
Technical parameters
1. Min Processing size of Notch:60mm(L)*30mm(W)
2. Max Processing size of Notch:200mm(L)*250mm(W)
3. Processing Thickness:3‐19mm
4. Height of working table:900±30mm
Calculated by: 80*35mm
8. Weight:≈1500Kg
9. Over Dimensions:1600*1950*2000mm
