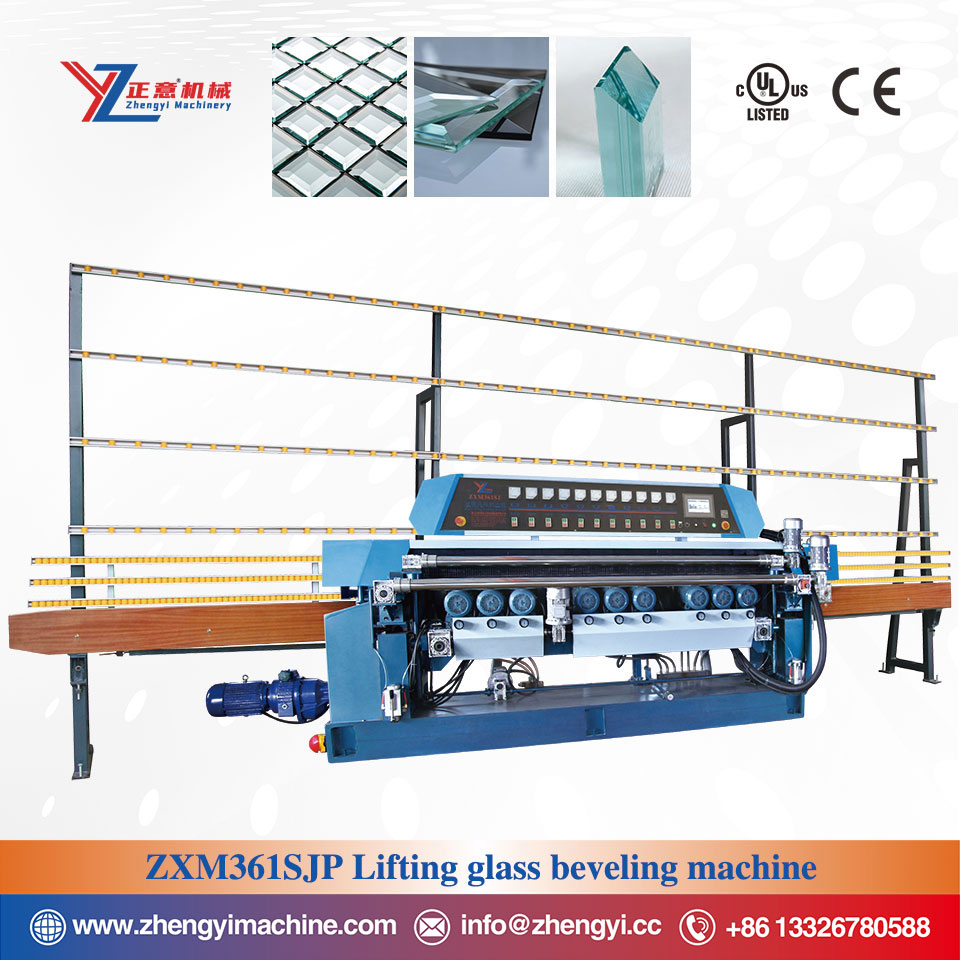

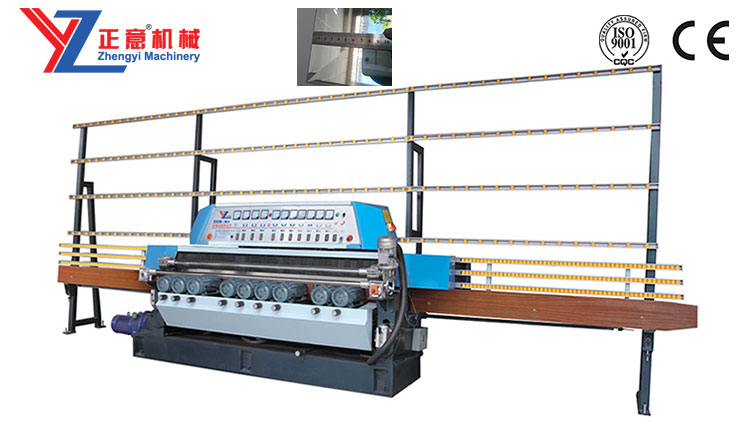

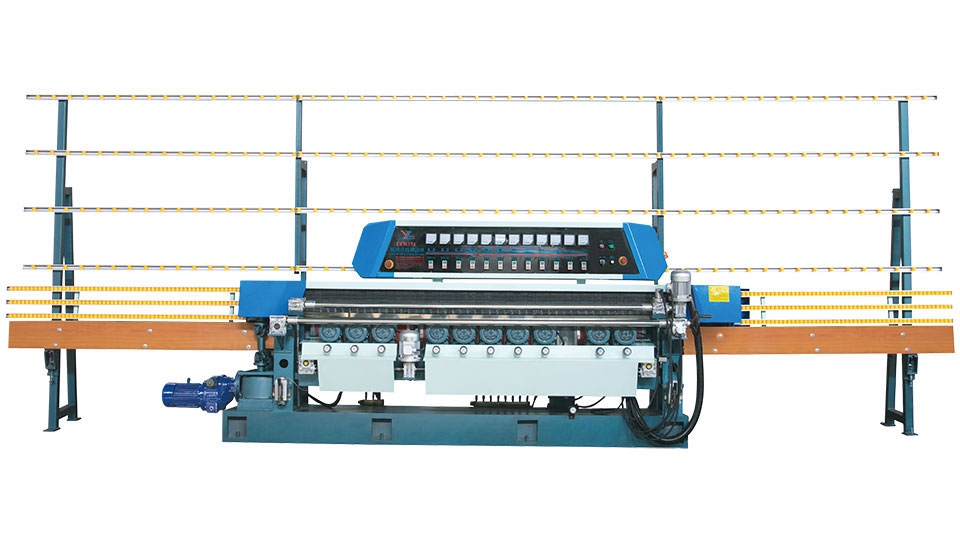

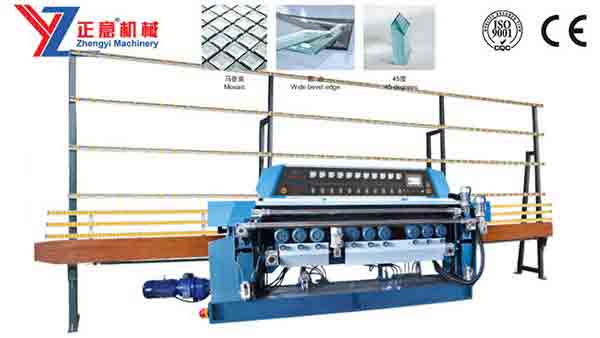

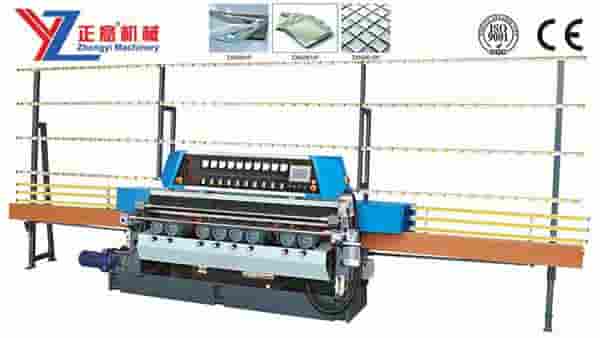

ZXM361SJ Glass Lifting Beveling Machine

View : 7748 | By Zhengyi

Product Details

Mechanical introduction：

Glass lifting beveling machine ZXM361SJ series is a 10 grinding head front beam integral lifting glass bevel machine, conventional models according to different configurations have two: ZXM361SJE electric digital display type and ZXM361SJP computer type. Machine can grind the inclined surface 45 degrees, suitable for grinding the straight bevel edge and bottom edge of flat glass, the rough grinding, fine grinding, polishing and grinding of the bottom edge of the beveled edge are completed at one time, and the effect after polishing is consistent with the mirror surface.This machine adopts PLC control system touch screen operation, direct grinding head motor, compact structure, low voice, less failure; The motor controls the overall swing angle of the twin screw, and has the function of the integral lifting and lowering of the front beam, which has advanced structure, high accuracy and easy operation; With the advantages of wide processing range, it is a special machine with a variety of functions such as processing wide beveled edge, mosaic small glass, and 3-45°multi-level edge, which truly achieves multiple uses of one machine.

Main Features：

◆Machine with INOVANCE PLC, INOVANCE inverter, MCGS touch screen operation, with independent intellectual property rights operation interface;

◆Machine and operating system with trinity function, touch screen input bevel width, mechanical automatic adjustment;

◆Base, girder, swing frame, column, grinding head are high density casting parts, strong and stable fuselage;

◆ABBinternational brand grinding head motor; 2.2KWvariable frequency motorwide range governor,ZHUJIANGworm gear box;

◆High quality alloy steel inserts of40cr steel, the front and back pads are hardened and wear-resistant by55 degrees high frequency quenching;

◆Front pads is combined with small pads construction structure,batch processing Mosaic glass loss splint without replacing the whole plate, reduce the cost of use;

◆Stainless steel water tank, two oil pumps on both sides respectively supply pressure plate, drag plate, lifting structure and other moving parts of lubrication;

◆Aluminum alloy scaffolding row;Italian BARBIERIsynchronous belt transmission;Delxibrand electric;

◆High quality paint shield; unique waterproof technology, girder bottom with water brush;

◆Coarse grinding wheel, fine grinding wheel, polishing wheel all use“XINGLI”brand, fine polishing wheel and felt wheel we use Italian wheels.
