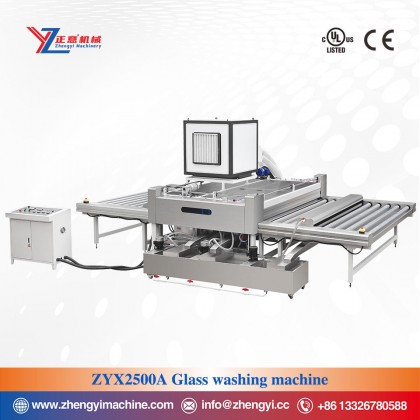

ZYX2500A Glass Washing Machine

Glass washing machine ZYX2500A model is air knife type washing machine, the maximum washing width is 2500mm, and the maximum speed is 10m/min; standard equipped with frequency conversion speed regulation, two pairs of straight air knives, with electric integral lifting, soft brush washing Low-E glass and other functions. It is suitable for washing and blowing drying of flat glass, and is a necessary equipment for glass deep processing enterprises. Our glass washing machine series products are complete, including ordinary glass series, coated glass series, electronic photovoltaic glass series, etc. The thickness of the washing glass is from 3mm-50mm, the fastest speed customization can reach 18m/min, and the cleaning width is 1600-3300mm according to the requirements. The washing section and air drying can be lifted and lowered as a whole, with digital display.It can be specially designed according to user requirements. It is more conducive to connecting glass edging machine production line, glazing line, insulating glass production line, safety glass production line, etc.

Main features:

◆The main drive is gear transmission, frequency conversion speed regulation, digital display, and the brush roller rotation of the cleaning part is driven by the independent belt transmission of the upper and lower sets of motors, with stable rotation speed and long service life.

◆The sheet metal of the washing part in contact with the water is all made of stainless steel.

◆The whole machine conveying rubber roller adopts vulcanized rubber fully coated structure (it is strictly forbidden to contact acid liquid).

◆The washing department and air dry part are lifted as a whole, and the maximum lift is: 350mm, which is convenient for cleaning and maintenance.

◆Three pairs of brushes (φ150mm) configuration (washing LOW-E class selection: the upper brush is equipped with two hard brushes with cylinder lifting, plus a soft brush, washable LOW-E glass, ordinary coating and sunlight coated glass, two hard brushes can be lifted by cylinder when washing coated glass, without damaging the coating surface).

◆The blower inlet chamber is equipped with an air filter, the air volume is large, the glass air drying effect is good, the whole wind box is installed in the upper part of the studio, and the cleaning and air drying parts are lifted and lowered at the same time, and do not occupy the production site.

◆Two pairs of straight air knife configuration, large wind, good air drying effect, with heating system.

◆The blower equipped with air heating function, at low temperature, the air drying effect is more obvious, and the water tank is equipped with water heating function;
